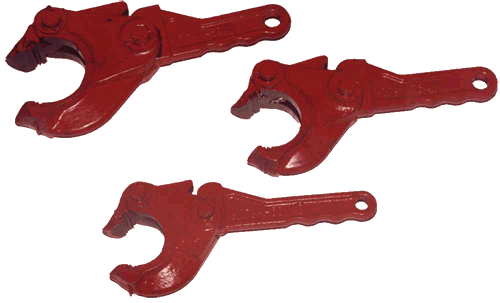

Purpose: Wrenches KTGU are designed for mechanical and manual spinning-up and uncoupling of threaded joints on pump-compressor pipes. |
|||
|
Set of supply consists of:
1. Assembled wrench 2. Set of spare parts 2.1 Anvil – 2 pcs; 2.2 Spring – 1 pc. |
|||
|
Technical specifications
|
|||
|
KTGU-М60
|
KTGU-М73
|
KTGU-М89
|
|
|
Nominal diameter of spinned-up and uncoupled tubes, mm
|
60 | 73 |
89
|
|
Maximum torque, kN/m
|
3,0
|
3,5
|
4,5
|
|
Maximum allowable load on handle end, N
|
11800
|
13700
|
16100
|
|
Wrench weight, not exceeding, kg: - assembled;
|
4,0
|
4,5
|
7,0
|
|
- complete set;
|
4,3
|
4,8
|
7,3
|
|
Overall dimensions, mm:
|
330 х 142 х 65
|
344 х 154 х 74
|
382 х 187 х 74
|
