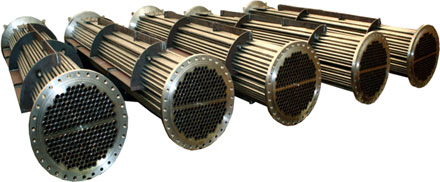

Purpose: Tube bundles are designed for heating, cooling, condensation of fluid and gas media in heat exchanging equipment with floating head or U-type tubes used in technological processes of oil-refining, chemical, petrochemical and gas industries according to GOST, ASME, TEMA standards. |
|
|
Materials:
|
|
|
Tubes – brass, carbon steel (steel 10-20), heat-resistant steel (15Х5М), stainless steel (12Х18N10Т, 10Х17N13М2Т).
Tube sheet – bimetal (steel + brass), heat-resistant steel (15Х5М), stainless steel (12Х18N10Т, 10Х17N13М2Т). |
|
|
Technical specifications
|
|
|
Shell diameter, mm
|
325-1400
|
|
Pressure, kgf/cm2
|
up to 100
|
|
Length of heat exchanging tubes, mm
|
3000-12000
|
|
Diameter of heat exchanging tubes, mm
|
20; 25
|
|
Heat exchange surface, m2
|
9,4-2000
|
