Purpose:

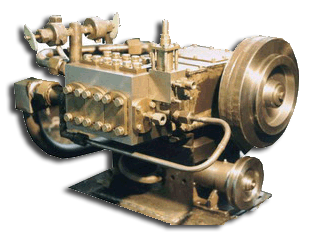

Triplex plunger crank horizontal pump is designed for transfer of fluids, chemically neutral to the hydraulic part materials with temperature up to 60°С (with allowed short-term increase of transferred fluid temperature up to 100°С) with kinematic viscosity not more than 8cm2/s, not containing solid particles in amount of more than 0,2% of weight and sizing not over 0,2mm. |
|
Technical specifications |
|
|
Plunger diameter, mm
|
25 |
|
Outlet pressure, MPa
|
10 |
|
Pump delivery, m3/h
|
2 |
|
Shaft rotary speed, rpm
|
320 |
|
Weight, kg
|
355 |
