Purpose:

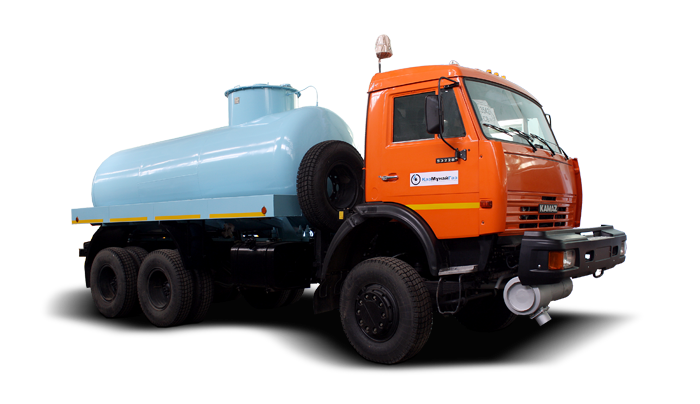

The truck is designed for transportation of non-aggressive process liquids with density not exceeding 1.3 gr/cm3, including sea water and formation waters in amount of 10 and 12 m3.

Design features:

- can be manufactured on KrAZ or KAMAZ chassis;
- can be manufactured with pump ATs10N and without ATs10 pump with tank emptying by gravity flow;
- high corrosion resistance of tank (internal corrosion resistance coating; increased wall thickness);

- tank truck with fiberglass tank 10 m3 capacity is designed for transportation of sea service water with temperature not exceeding 95°C and also boric acid solutions with concentration up to 37% with no hydrofluoric acid dash added and temperature from -40°C up to +50°C .

Technical specifications:

Tank lorry type

АTs 10N (KAMAZ 53228) АTs 10 (KAMAZ 53228)
 АTs 10N (KrAZ 63221)
АTs 10N (KrAZ 65053)

АTs 12N (KrAZ 65053) АTs12 (KrAZ 65053)
АTs 12 (KrAZ 63221)
Rated capacity at temperature 20C, m3 (l)
10 (10 000)
12 (12000)
Type of pump for fluid transit
ОDN 120-100-65 or 1SVN
ОDN 120-100-65 or 1SVN
Pump capacity at chassis engine rotation frequency of 1450 rpm
65 or 38
Pump drive
Mechanical, from the truck traction engine
Thickness of tank walls, mm
5
Overall dimensions
- length, not exceeding, mm
12 000
- width
depends upon the chassis technical data
- height, mm
3500
