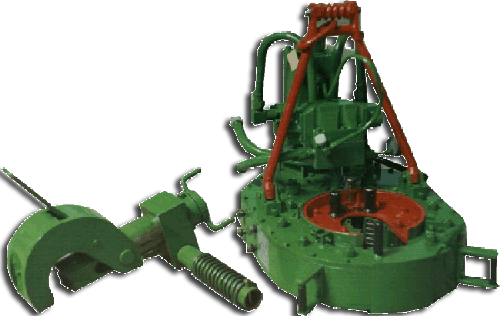

Purpose: Suspended split-type tongs KPR-12 are designed for spinning-up and uncoupling of tubing and drill pipes of different diameters during well work-over and production maintenance as part of hydraulic lifting rig. |
|
|
The tongs consist of:
On Client’s requisition, the tongs can be additionally completed with:Replaceable grippers – 2 pcs., stopper – 1 pc., shock-absorber suspension and shock-absorber - 1 pc., hoses -3 pcs. Set of spare parts and accessories: 1. Brake band – 2 pcs. 2. Roller – 2 pcs. 3. Slips. A jet thrust, a jet thrust stay, hydraulic cylinder, manipulator. |
|
| Technical specifications | |
|
on the lowest / the highest gear |
12/4
|
|
Nominal diameters of spinned-up and uncoupled pipes, mm
|
60, 73
|
|
Nominal diameters of spinned-up and uncoupled pipes, mm (on order)
|
89, 102, 114, 73B, 89B
|
|
Required hydraulic drive parameters: capacity, kWt
|
30
|
|
Pressure in hydraulic system, MPa
|
16
|
|
Operating fluid flow, dm3/min
|
140
|
|
Overall dimensions of tongs: length, width, height, mm
|
1050х700х560
|
|
Weight of tongs without set of spare parts, kg
|
350
|
