Purpose:

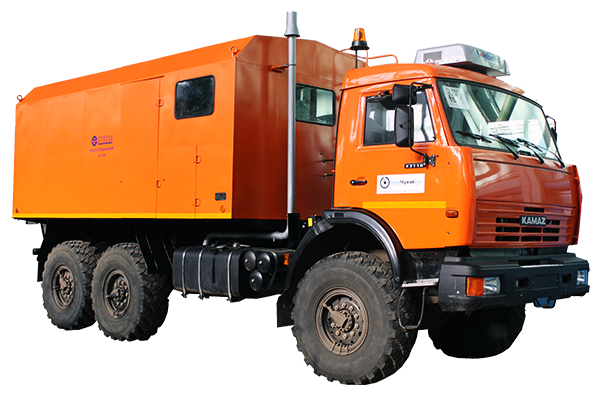

The truck is designed for dewaxing of wellbottom zone, pipe lines, tanks, fittings and other oil field equipment by high pressure saturated steam.
Operations performed:
- mobile moving from well to well;
- dewaxing of wellbottom zone;
- washing of pipelines, reservoirs, and various oil field equipment.
Design features:
Possibility of manufacturing the truck on Ural, KrAZ, KAMAZ chassis with pump 2.3PT25.
Technical specifications
|
Chassis mounting base
|
KAMAZ 53228/43118 KrAZ 65053 Ural 4320
|
|
Steam production capacity, kg/h
|
500-1600
|
|
Steam temperature, С
|
175 - 310
|
|
Steam pressure, MPa (kgf/cm2)
|
0,78(8) - 9,8 (100)
|
|
Time required for steam production from the moment of starting the boiler, min
|
20
|
|
Water tank capacity, m3
|
5,2
|
|
Overall dimensions, mm
|
|
|
length
|
9100
|
|
width
|
2500
|
|
height
|
3700
|
|
Total weight of the rig, kg
|
20400
|
|
Truck complies with safety requirements of RoK & RF, ST АО 30482858-023-2009 and has compliance certificates and appliance permit .
|
|
