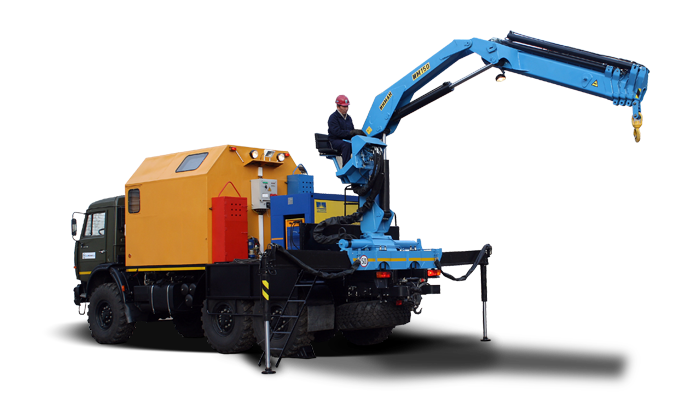

Purpose:
- repair and preventive maintenance of oil-field above-ground equipment, technological pipelines, oil-gathering stations, conventional pumping units as well as water supply equipment & sewers in municipal engineering of settlements.
Operations performed:
1) handling, welding, gas cutting, metal and mechanical operations;
2) transportation of different equipment units;
3) extraction of liquids.
Technical specifications:
|
Assembly base - chassis
|
KAMAZ 43118
|
| Overall dimensions in transit condition, mm | |
|
- length
|
8535
|
|
- width
|
2540
|
|
- height
|
3770
|
|
- total weight, not exceeding, kg
|
17000
|
| Workshop | |
|
- body structure:
|
- framework type van, all-metal, welded, heat-insulated, heated
|
|
- air heater, model
|
PLANAR -44D-24
|
|
- intercom, model
|
PU-07А
|
|
- cargo bed
|
Open on-board load board |
|
- repair crew, men, not exceeding
|
6
|
| Power supply, Watt: | |
|
- from alternating current generator
|
380/220
|
|
- type
|
three phase
|
|
- drive
|
from chassis traction engine
|
|
- from outer inductrial network
|
380
|
|
- system of direct current
|
from auto chassis
|
|
- nominal voltage
|
24
|
|
Crane manipulator device
|
|
|
- model
|
IМ 150
|
|
- load capacity, net, ts
|
|
|
- maximum
|
6,05
|
|
- on max work overhang
|
1,32
|
|
-overhang, m:
|
|
|
-max
|
9,6
|
|
-max working
|
8,4
|
|
- min
|
2,0
|
|
- max hoisting height, m
|
10,55
|
|
- max lowering-in depth, m
|
6,02
|
|
- control mode
|
hydraulic
|
|
- control place
|
from manipulator cradle
|
|
- load-handling device
|
hook
|
|
Desk-size drilling machine |
|
|
- model
|
АS2116М
|
|
- max nominal drilling diameter, mm
|
16
|
|
- spindel speed range, pcs
|
6
|
|
- min spindel rotary speed, rpm
|
170
|
|
- max spindel rotary speed, rpm
|
2000
|
|
Cutter grinder
|
|
|
- model
|
PROMA BKS-2500 25002502
|
|
- nominal rotary speed, rpm
|
2950
|
|
- disc diameter, mm
|
250
|
|
- disc thickness, mm
|
32
|
|
Pump - Gnom 25-20
|
|
|
- feeding, m3/h
|
25
|
|
- pressure, m
|
20
|
|
Autonomous welding machine with auxiliary generator
|
|
|
- model
|
АDD-4004МV
|
|
- engine, type
|
D-144
|
|
- nominal welding current, А
|
400
|
|
- nominal operating voltage, V
|
36
|
|
Gas station
|
|
|
- oxygen cylinder volume, l
|
40
|
|
- propane cylinder volume, l
|
50
|
|
- reducer BKO-50, pcs
|
1
|
|
- reducer BPO-5, pcs
|
1
|
|
- propane burner, pcs
|
1
|
|
- propane cutter, pcs
|
1
|
|
Lubricant supercharger
|
|
|
- model
|
S321М
|
|
- tank capacity, l
|
40
|
|
- lubricant pressure, MPa
|
35 |
|
Note – Change of equipment by another types and brands with similar specifications is allowed if technical specifications of truck remain at the same level. Refer to maintenance documentation for specific technical data of indicated equipment.
|
|
