Purpose:

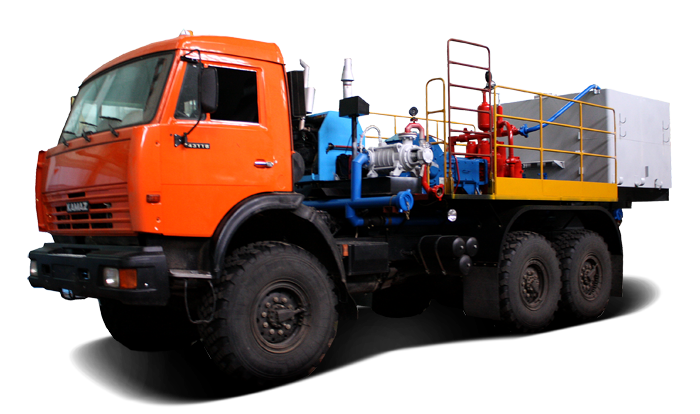

The truck is designed for pumping various fluid mediums during well cementation, and for other
washover-squeezing works performed during construction, development and repair of wells.
Operations performed:
- washover-squeezing works at the well;
- well cementation.
Auxiliary operations
- transfer of different fluids and liquid solutions.
Design features:
possibility of manufacturing the water-feeding tank of the truck with a diesel drive.
Technical specifications
|
Chassis mounting base
|
ASTs 320, ASTs 320P
|
||
|
KAMAZ 43118
|
KrAZ 65053 | URAL 4320 | |
|
High pressure pump
|
Two-piston pump (type 9Т)
|
||
|
Useful capacity, not exceeding, kW
|
106
|
||
|
Maximum pressure, MPa (For piston D100 mm)
|
32
|
||
|
Maximum pump delivery, dm3/s (For piston D 100 mm)
|
14
|
||
|
High pressure pump drive
|
from chassis traction engine
|
||
|
Water-feeding pump
|
centrifugal pump, multistage, sectional
|
||
|
Rotation frequency of pump shaft, rev/min
|
2100…2900
|
||
|
Rated pressure, MPa
|
1.0
|
||
|
Pump delivery, dm3/s
|
10,5
|
||
|
Water-feeding pump drive (not installed on special truck ASTs 320P) |
from auxiliary engine D120
|
||
|
Capacity of measuring tank, not less then, m3
|
6
|
6
|
3 or 6
|
|
Capacity of cementing grout tank, m3
|
0,25
|
||
|
Internal diameters of manifold tubing, mm
|
|||
|
suction line
|
100
|
||
|
pressure line
|
50
|
||
| Overall dimensions, mm, not exceeding | |||
|
length
|
8800
|
10500
|
10000
|
|
width
|
2500
|
2500
|
2500
|
|
height
|
3500
|
3500
|
3500
|
|
*1 Total weight of the rig when moving, not exceeding, kg
|
18000
|
17800
|
18000
|
|
*1 Special truck moves only with empty measuring tank
|
|||
|
Special truck complies with the safety requirements of RoK and RF and has compliance certificates of RoK and RF.
|
|||
