Purpose: Shell and tube heat exchangers are designed for heating, cooling, condensation of fluid and gas media in technological processes of oil-refining, chemical, petrochemical and gas industries according to GOST, ASME, TEMA standards. |
|||
|
Technical specifications
|
|||
|

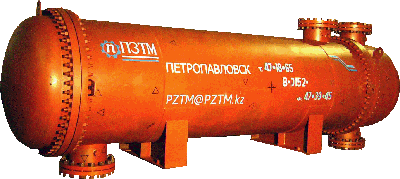

Shell-and-tube heat exchangers with fixed casing heads
|

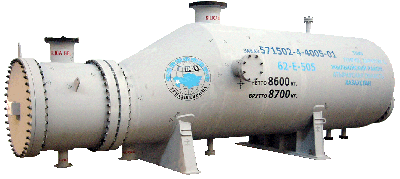

Shell-and-tube heat exchangers with floating casing heads
|
||
|
Shell diameter, mm
|
159-1800
|
Shell diameter, mm
|
325-1400
|
|
Pressure, kgf/cm2
|
up to 63
|
Pressure, kgf/cm2
|
up to 63
|
|
Length of heat exchanging tubes, mm
|
2000-9000
|
Length of heat exchanging tubes, mm
|
3000-12000
|
|
Diameter of heat exchanging tubes, mm
|
20; 25
|
Diameter of heat exchanging tubes, mm
|
20; 25
|
|
Heat exchange surface, m2
|
1,5-1300
|
Heat exchange surface, m2
|
9,4-2000
|
|
Materials
|
|||
|
Shell – carbon (Vst.3sp5), heat-resistant (15Х5М), stainless steel (12Х18N10Т, 10Х17N13М2Т).
|
Shell – carbon (Vst.3sp5), heat-resistant (15Х5М), stainless steel (12Х18N10Т, 10Х17N13М2Т)
|
||
|
Heat exchanging tubes – carbon (10, 20), heat-resistant (15Х5М), stainless steel (12Х18N10Т, 10Х17N13М2Т), brass (LO62-1)
|
Heat exchanging tubes – brass (LOMSH 70), carbon (10, 20), heat-resistant 15Х5М), stainless steel (12Х18N10Т, 10Х17N13М2Т)
|
||
|
Tube sheets – low-alloy (16GS), stainless steel (12Х18N10Т, 10Х17N13М2Т),
bimetallic (16GS+LO62-1) |
Tube sheets – low-alloy (16GS,9G2S), heat-resistant (15Х5М), stainless steel (12Х18N10Т, 10Х17N13М2Т) | ||
