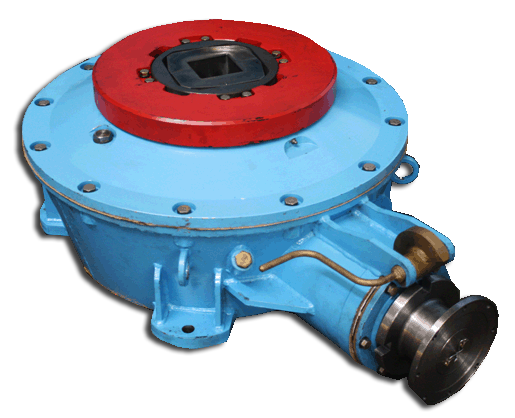

Purpose: Rotor R250 is designed for drilling instrument rotation during drilling operations and well overhaul and also for retention of pipe string which is locating on elevator. |
|
|
Technical specifications
|
|
|
Drive
|
Mechanical
|
|
Table opening, mm
|
250
|
|
Allowed load for rotary table (when locking device is on), kN, (tf) |
785 (76,48)
|
|
Table rotation speed, rpm not exceeding
|
146
|
|
Allowable transmission capacity, kW
|
150
|
|
Guide well tube square side, mm
|
80
|
|
Rotor weight, kg
|
518
|
|
Overall dimensions, mm
|
|
|
length
|
1052
|
|
width
|
770
|
|
height
|
383
|
