Purpose:

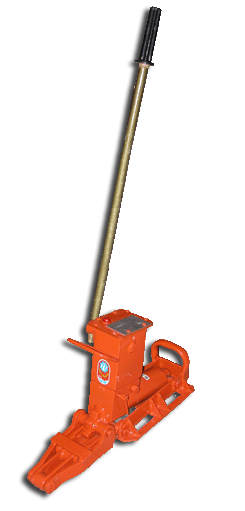

Rail-sleeper grid liner is designed for lining of rail-sleeper grid during railway tracks running service and different types of works.
|
|
|
Technical specifications
|
|
|
Maximum working spreading effort, Kn, (t)
|
70 (7)
|
|
Rod pass, mm, not less than
|
90
|
|
Cylinder diameter, mm
|
60
|
|
Quantity of pump elements
|
2
|
|
Pressure in hydraulic system, MPa (kgf/cm2)
|
|
|
- working pressure
|
0...26 (0...260)
|
|
- maximum pressure
|
28 (280)
|
|
Working fluid volume, l
|
0,6
|
|
Pump handle effort at maximum pressure, N, (kgf), not exceeding
|
240 (24)
|
|
Weight, kg, not exceeding
|
21
|
|
Overall dimensions, mm, not exceeding
|
|
|
- length
|
535
|
|
- width
|
170
|
|
- height (without handle)
|
335
|
