Purpose:

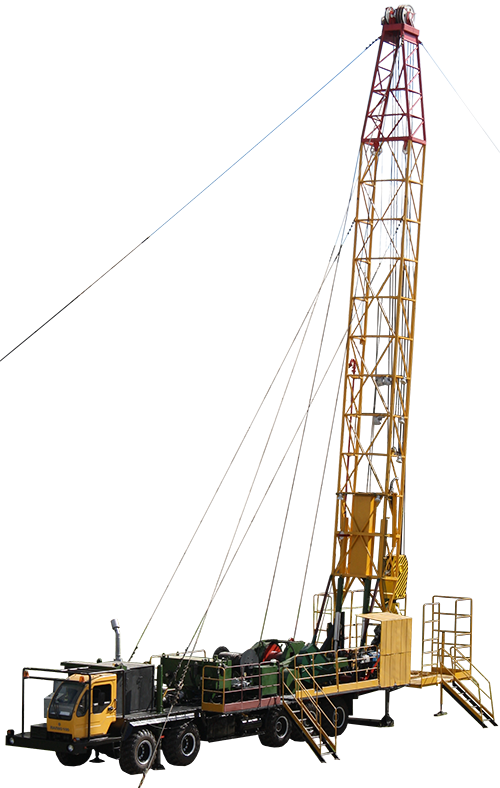

Drilling rig PAP-80/100 is designed for oil & gas well-workover operations and for work as a part of mobile drilling complex with load on hook up to 100 tons.
Operations performed:
- mobile moving from well to well;
- assembly and disassembly of control head with the main and auxiliary hoist;
- round trip with sucker rods, tubing and drill pipes;
- mechanized spinning-up and uncoupling of tubing and drill pipes;
- construction of cement bridging in holes through derrick manifold;
- drilling-out of sand plugs and cement bridging with the help of mechanical or hydraulic drive rotary;
- fishing and other works;
- flushing-out of wells through the derrick manifold;
- breakdown elimination;
- milling of the metallic parts of drilling equipment fallen into the well;
- well development after drilling completion.
Design features:
- mobile moving from well to well;
- increased angle lean of derrick allows to work at well clusters with pipes outbreak at 90° relative to longitudinal axis of rig;
- mono derrick of extended hardness;
- rig` axles load and transport dimensions do not exceed allowed regulations for public road travel;
- emergency drive, operating on electric engine of lifting rigs` all units and allowing to operate by main engine failure, is provided;
- drum with hoist wireline stock for bypass is installed;
- separate assembly & working hydrosystems improve reliability of rig;
- single drum drawworks with disc air clutches and water cooling disc brakes.
Technical specifications
Lifting rig
| Chassis | Module self-propelled off-road platform PS-5 |
| Wheel arrangement | 10х10.1 |
| Length in transit condition, m, not exceed | 20,0 |
| Width in transit condition, m, not exceed | 2,78 |
| Height in transit condition, m, not exceed | 4,0 |
| Engine | TMZ-8431 |
| Power, kW (hp) | 346 (470) |
| Clutch | YaMZ-239 |
| Nominal load on hook, tf | 80 |
| Allowed load on hook, tf | 100 |
| Test load on hook, tf | 125 |
| Single drum drawworks with disc air clutches and water cooling disc brakes | |
| Protector – controlled, pneumatic, actuation from running-on rope coil on drum | |
| Hook block hoisting speed range, m/s | 0,01-1,50 |
| Derrick – inclined with open front face | |
| Derrick angle of lean | 5 |
| Pulley-block system ratio | 3х4 |
| Drill line diameter, mm | 25 |
| Rope stock drum capacity, m | 500 |
| Mechanism drive operates on chassis engine & on electric engine | |
| Separate assembly & working hydraulic systems | |
| Pressure in hydraulic system, MPa (kgf/cm2): | |
| - assembly | 17,5 (175) |
| - working | 19,6 (200) |
| Electrical equipment voltage, V | 380, 220, 24 |
| Pneumatic system operates on chassis compressor | |
| Pressure in pneumatic system, MPa | 0,7-1,0 |
| Receivers capacity, dm3 | 240 |
| Auxiliary drawworks load capacity, tf | 3 |
| Wellhead platform | Dismounted |
| Platform dimensions in working posotion, m | 3х4 |
| Guard platform height, m | 2,5 |
| Temperature operational conditions | - 40°С …+ 40°С |
