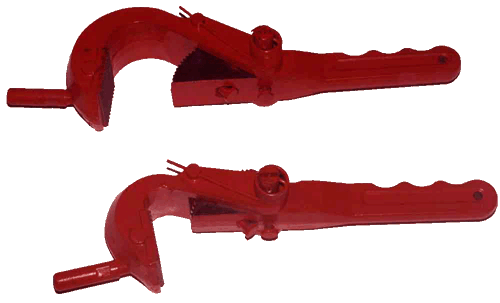

Purpose: KT wrenches are designed for automatic and manual spinning-up and uncoupling of oil grade pipes by seizing them in body or coupling area. |
||
|
Set of supply consists of:
1. Assembled wrench. 2. Spare parts set
2.1 Anvil – 1 piece.
2.2 Slip – 1 piece. |
||
|
Technical specifications
|
||
|
КТ48-89
|
КТ89-132
|
|
| Nominal diameter of pipe and coupling hold, mm |
48-89
|
89-132
|
| Maximum torque, kN∙m | 3,5 |
4,5
|
| Maximum allowable load on handle end, kg |
980
|
1176
|
| Weight, not exceeding, kg: - assembled |
7,9
|
9,6
|
| - complete set |
8,7
|
10,4
|
| Overall dimensions, mm: |
486 х 130 х 120
|
510 х 140 х 120
|
