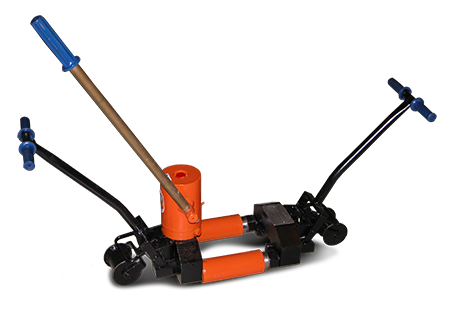

Purpose: Hydraulic accelerator is designed for longitudinal shifting of rails and restoration of normal clearances between rails. It is applied on broad railway gauges laid of R50, R65, R75 rails according to GOST 24182. |
|
|
Technical specifications
|
|
|
Maximum spreading effort, Kn, (t)
|
230 (23)
|
|
Spreading cylinder piston diameter, mm
|
50
|
|
Quantity of cylinders, pcs
|
2
|
|
Pressure in hydraulic system, MPa
- working pressure- maximum pressure |
0...60
64
|
|
Maximum separation rate, mm
|
100
|
|
Pump
|
manual, four plunger
|
|
Pump handle effort at maximum pressure, N, not exceeding
|
250 (25)
|
|
Working fluid, oil
|
AU, VMGZ, MGE-10A
|
|
Weight, kg, not exceeding
|
40
|
|
Overall dimensions, mm, not less than
|
|
| - length | 700 |
| - width | 250 |
| - height (without handle) | 570 |
