Purpose

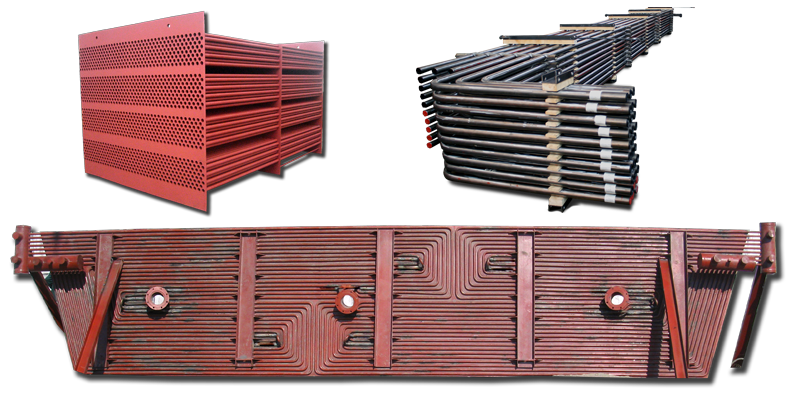

Heating surfaces are applied for heat-transfer agent transmission in energotechnological boilers, steam superheaters, economizers, utilizer boilers, etc.  Technical requirements at designing and manufacturing complies with "Safe requirements for steam and hot-water boilers".

Technical specifications

Tubes material          carbon, alloy, high-alloy chromium and chromium-nickel austenitic steel
Tubes type plain, tube-in-sheet
Tubes diameter, mm from 16 up to 89
Temperature, С up to 600
Pressure, MPa up to 50
Blocks weight, kg up to 20 000
