Purpose:

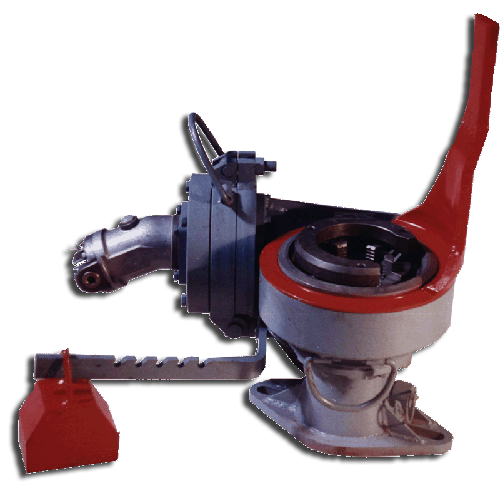

Tongs APR-2-GP is designed for mechanization of the operations of spinning-up and uncoupling, holding suspended and freeing of tubing during underground repair of wells. |
|
| Set of supply: | |
| 1. Slip hanger for pipes; | |
| 2. Slip hanger with slips; | |
| 3. Slips for pipe diameter 60mm- 2 sets; 73mm- 2 sets; | |
| 4. Centralizer liners for pipe diameters 60,73 mm – 1 piece each. | |
|
Technical specifications
|
|
|
Maximum torque, kNm (kg/cm)
|
3,0 (300)
|
|
Nominal diameters of pipes, spinned-up and uncoupled by the tongs, mm
|
60, 73
|
|
Nominal diameters of pipes, spinned-up and uncoupled by the tongs, mm (on order)
|
48, 89
|
|
Speed of carrier rotation, rev/min
|
8-55
|
|
Load capacity, t
|
60
|
|
Tongs drive – hydraulic, from the rig hydraulic system
|
|
|
Weight, kg, not exceeding: - tongs as-assembled
|
200 |
| - complete set |
270
|
|
Overall dimensions of tongs: length, width, height, mm
|
720х480х720
|
