Purpose:

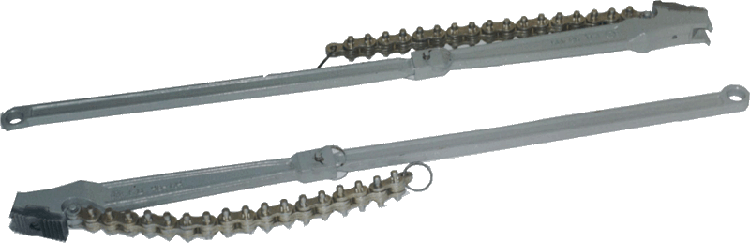

Wrenches KTs are designed for manual spinning-up and uncoupling of joints of oil grade tubes. |
||||
|
Supply set consists of:
1. Assembled wrench – 1 piece;
2. Spare anvil – 1 piece. Only wrench 1KTs is completed with spare anvil. |
||||
| Technical specifications | ||||
|
KTs
|
KTsO-1
|
KTsN -1
|
KTsN1-01
|
|
| Nominal diameter of spinned-up and uncoupled tubes, mm |
48-114
|
60-114
|
60-114
|
60-245
|
| Maximum torque, kN/m |
1,0
|
1,1
|
1,1
|
2,9
|
| Maximum allowed load on arm end with lengthening bar, kg |
98
|
166
|
95
|
116
|
| Weight of assembled wrench, not exceeding, kg |
6,2
|
10
|
14
|
18
|
|
Overall dimensions, mm: Length with lengthening bar/ without lengthening bar |
1040/540
|
660
|
1160
|
1160
|
| Width |
66
|
110
|
110
|
110
|
| Height |
46
|
110
|
110
|
110
|
| Chain length |
484
|
667
|
667
|
1345
|
